ESP-IDF Development Environment Setup

Installing VSCode and ESP-IDF Extension

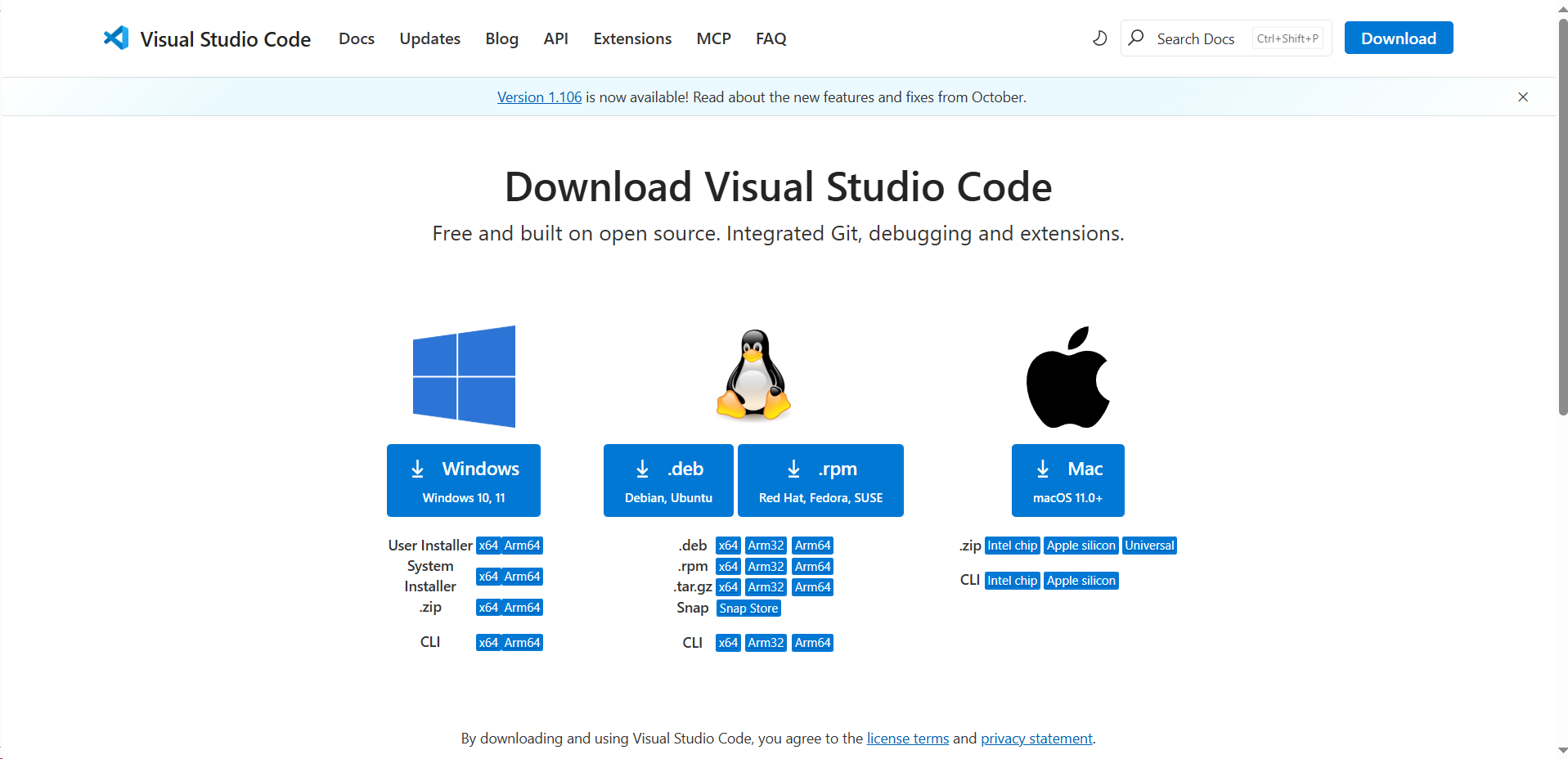

First, open the VSCode official website https://code.visualstudio.com/download and select the appropriate system and architecture for download and installation.

../_images/vscode1.png

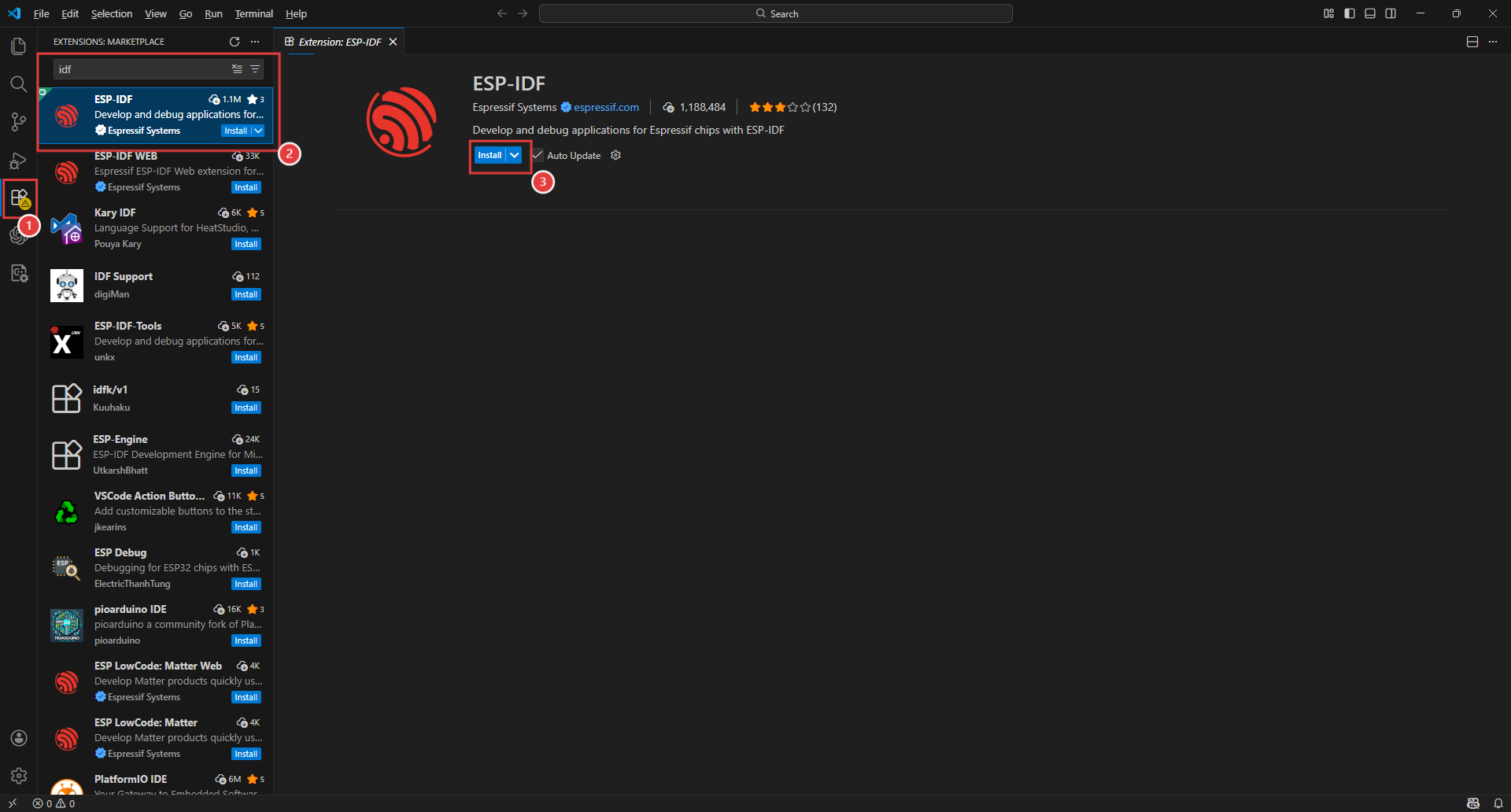

After downloading, run the installer. Once installed, open VSCode and search for “esp-idf” in the Extensions panel on the left side, then install the ESP-IDF extension.

../_images/vscode2.png

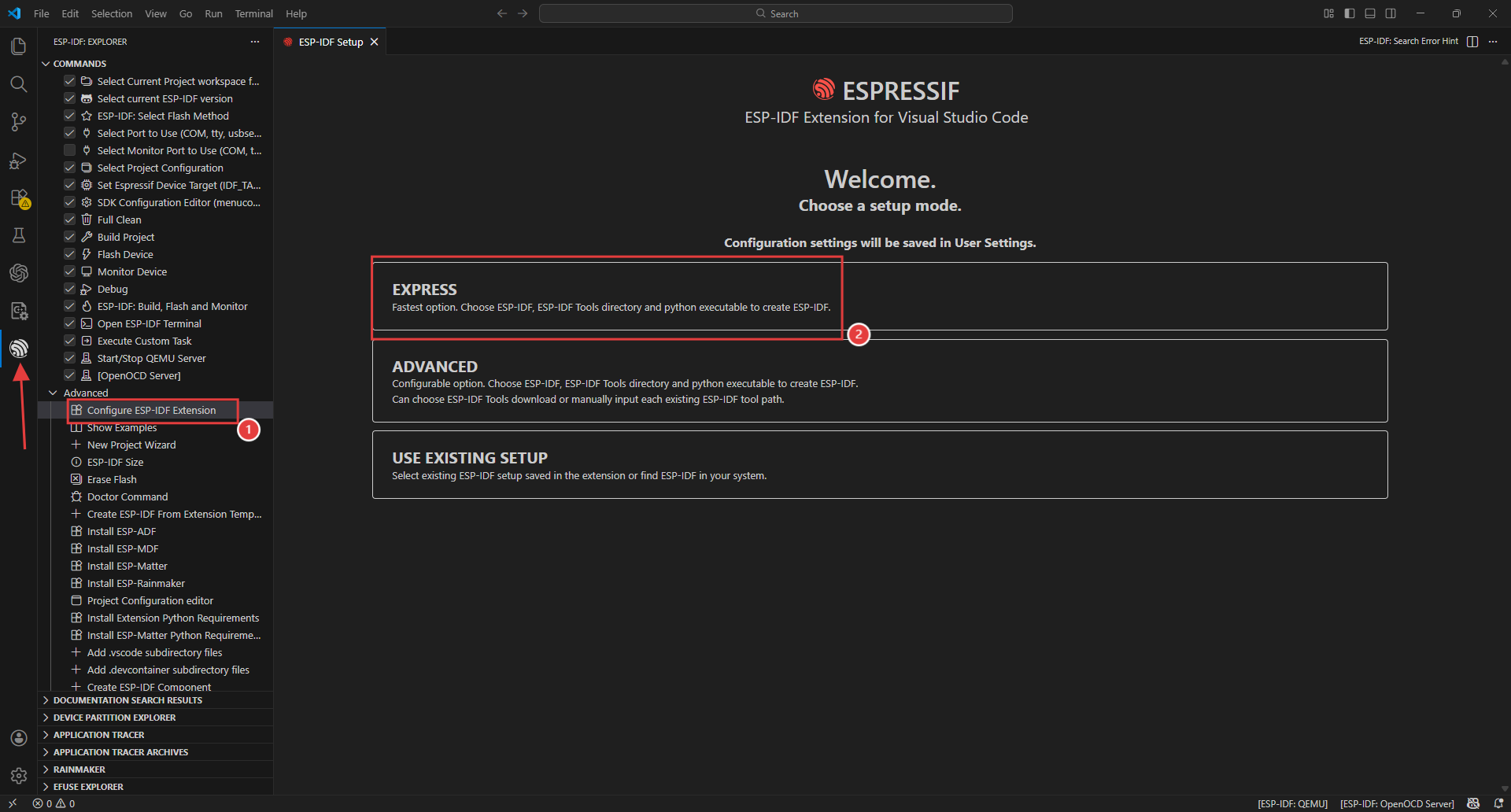

After installation is complete, click on the IDF extension icon on the left side, open Advanced, then select “Configure ESP-IDF extension” and click EXPRESS.

../_images/vscode3.png

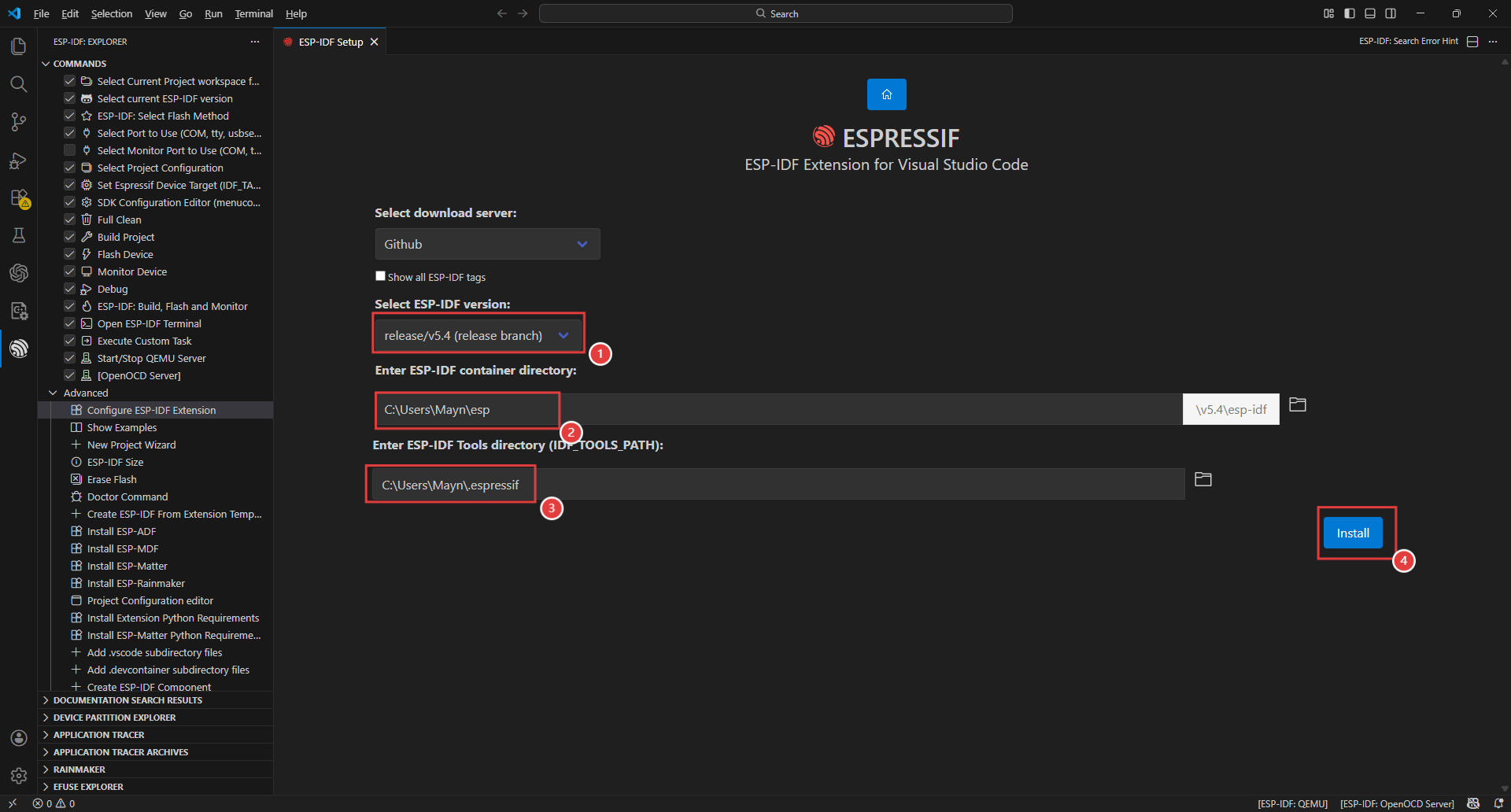

Select an appropriate download server and ESP-IDF version (we choose 5.4 here), then click Install to download and install. It will automatically install the corresponding tools and environment. Please wait a moment.

../_images/vscode4.png

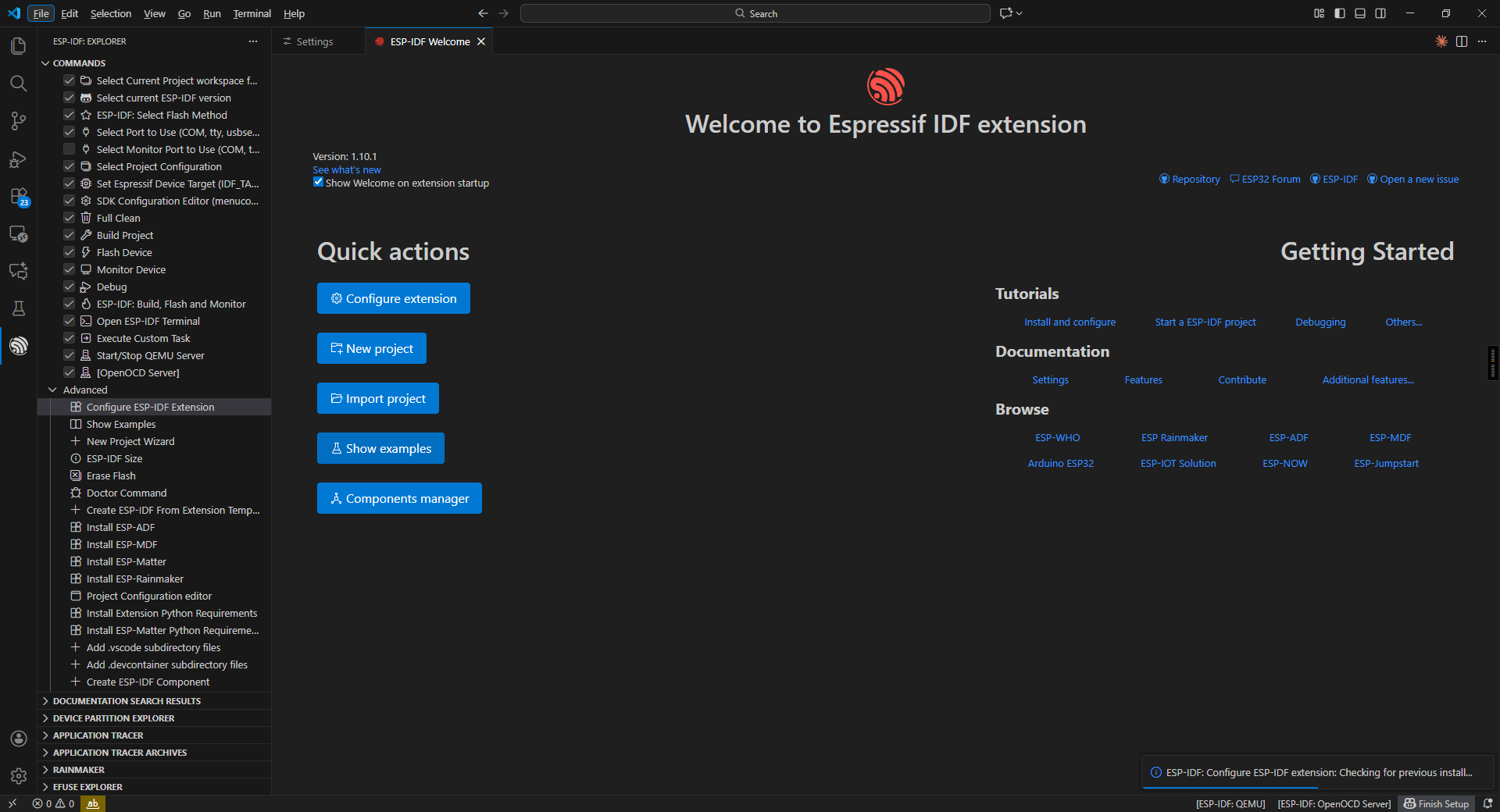

After installation is complete, you will see the following interface, indicating successful installation.

../_images/vscode5.png

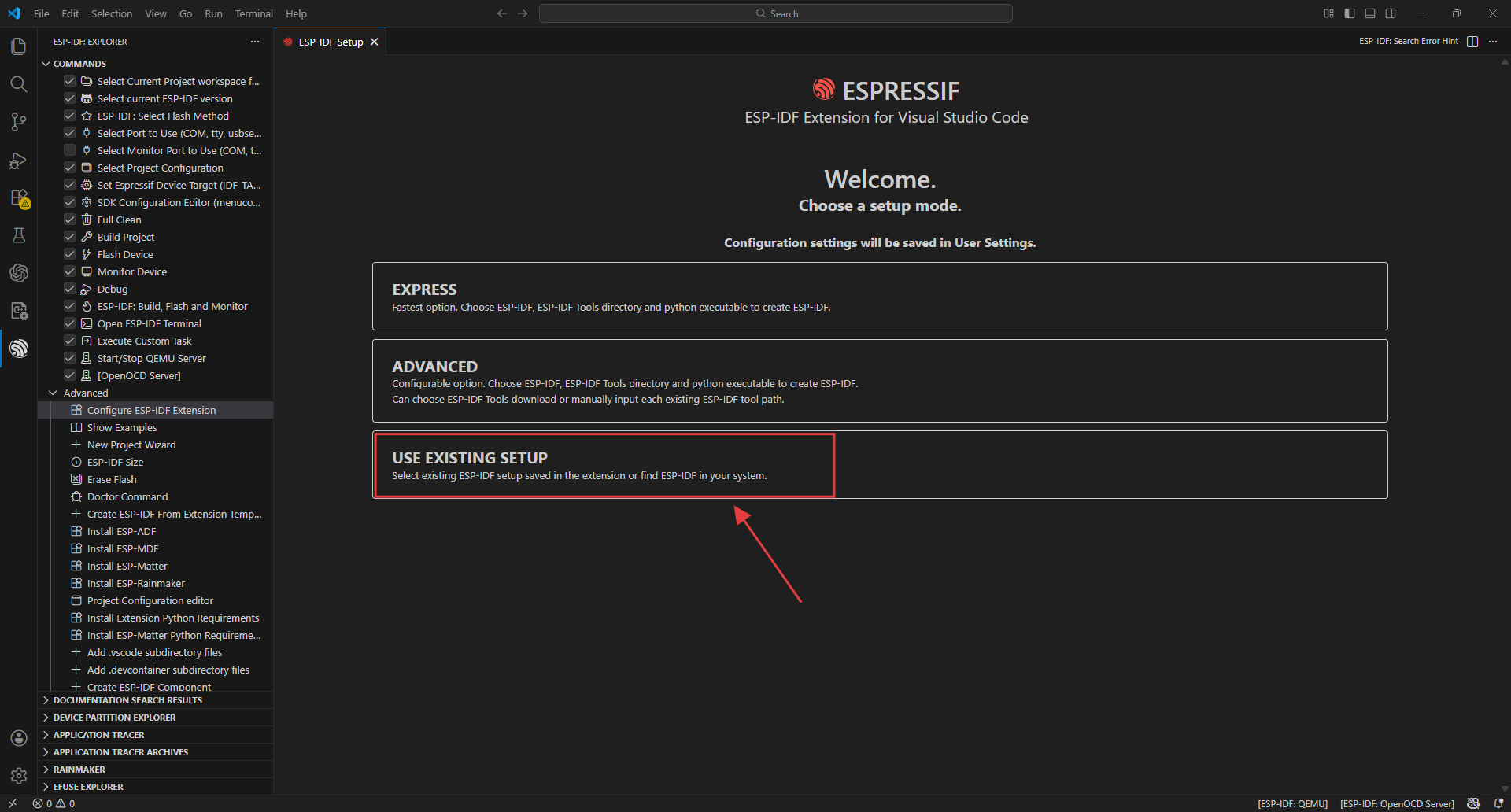

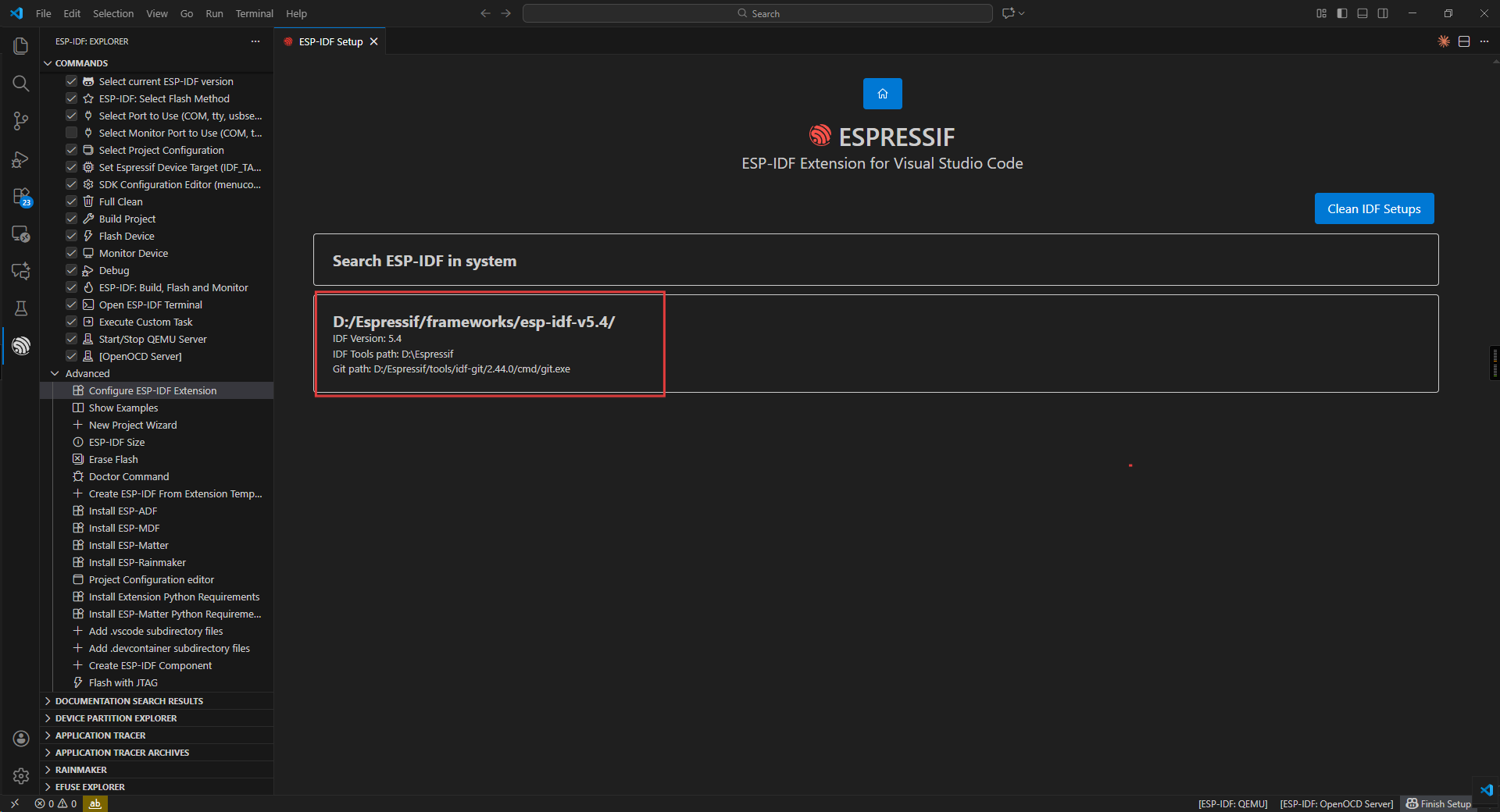

If you have previously installed an offline IDF, you can directly import the plugin without re-downloading.

../_images/vscode6.png ../_images/vscode7.png
